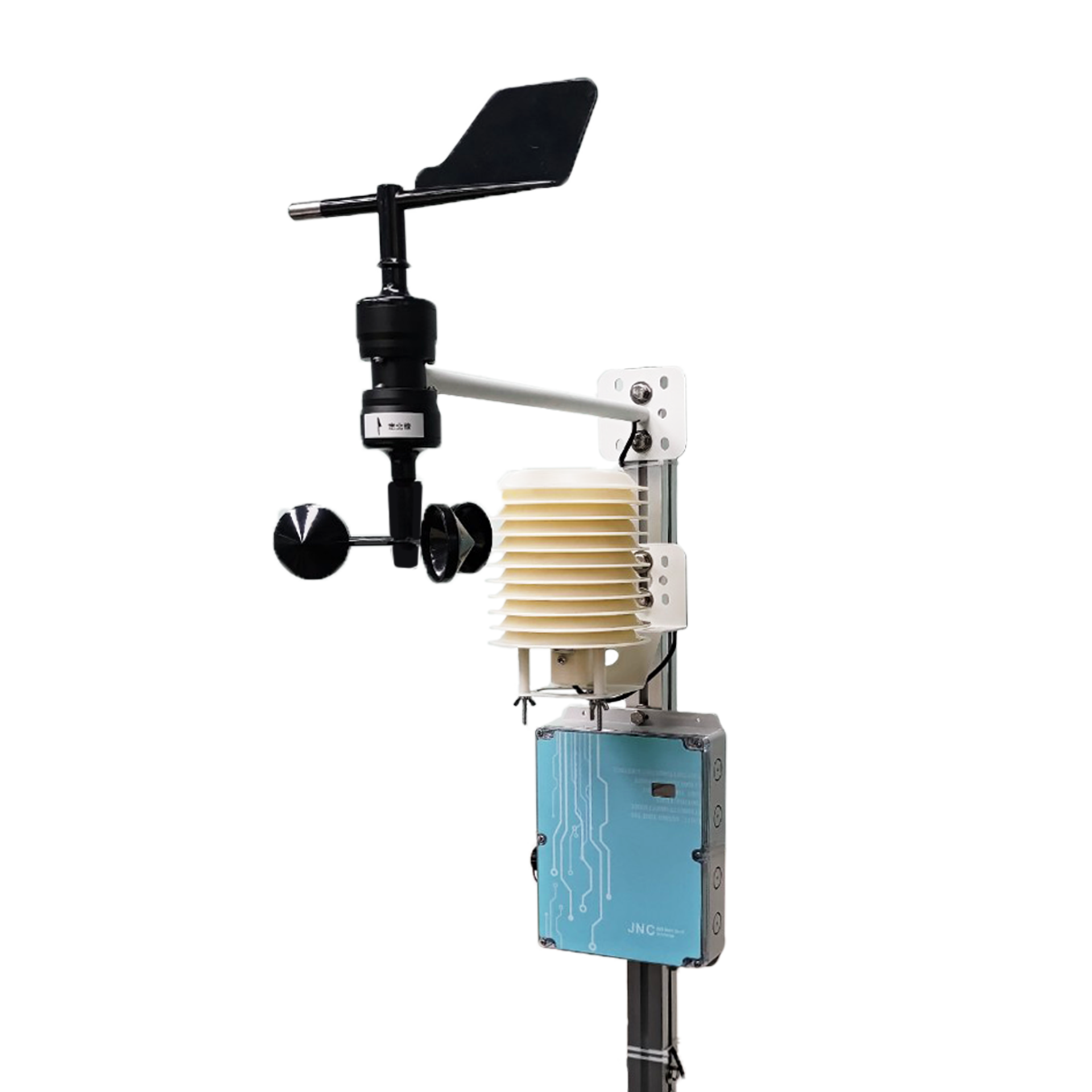

cloud weather station-牛彩官网
1.it has a web interface, and can be remotely controlled by using a browser.
2.3-network architecture: with ethernet, wifi, 4g (optional) communicationat the same time.
3.active early warning: 4g communication can be selected to sendtext messages (full chinese culture and power failure text messages)
4.the historical data in the usb can be downloaded remotely。
5.can be charged with solar panels.
6.waterproof quick connector, easy to install.
7.the gas sensor is designed for outdoor light louver shell, with accurate sensing,
fast response and high data transmission efficiency.
8.applications:orchid garden, greenhouse, mushroom, environmental monitoring
2.3-network architecture: with ethernet, wifi, 4g (optional) communicationat the same time.
3.active early warning: 4g communication can be selected to sendtext messages (full chinese culture and power failure text messages)
4.the historical data in the usb can be downloaded remotely。
5.can be charged with solar panels.
6.waterproof quick connector, easy to install.
7.the gas sensor is designed for outdoor light louver shell, with accurate sensing,
fast response and high data transmission efficiency.
8.applications:orchid garden, greenhouse, mushroom, environmental monitoring
wind speed specifications
(1)measuring principle:rotary cup(2)measuring range:0m/s~70m/s
(3)accuracy:± 0.3m/sor±0.5%f.s(4)resolution:0.1m/s(5)minimum starting speed:≥ 0.5m/s
(6)material:anti-uv abs(7)power consumption:≤ 0.48w(8)power supply:12~24vdc
(9)operating temperature:-35~60℃(10)working humidity:0~100% no condensation
(11)waterproof level:ip64(12)rotation diameter:180mm(13)signal output:rs-485 modbus rtu
wind direction specifications
(1)measuring principle:potential difference(2)measuring range:360 °(3)accuracy:±3 °(4)resolution:1 °
(5)minimum starting speed:≥ 0.5 m/s(6)power consumption:≤ 0.48w(7)power supply:12~24vdc
(8)operating temperature:-35~60 ℃(9)working humidity:0~100% no condensation
(10)waterproof level:ip64(11)rotation diameter:296mm(12)signal output:rs-485 modbus rtu
weather station controller specifications
(1)power:transformer:ac input:100~240v(50/60hz)/equipment:power consumption:8.5w、dc output:12v maximum 2a current
(2)environment:working temp:-20~70°c / 0 ~ 95%rh non-condensing (wifi 0~70°c)/storage temp:-30~70°c
(3)communication function:display:backlit color lcd/ethernet interface:rj-45 ethernet cable with web service function、protocol modbus tcp/communications protocol:modbus rtu, mqtt/
wired communication:4g / nbiot (the above options)
(4)physical conditions:size (mm):252 x 175 x 60(w×h×d)/weight:<0.7kg
(5)shell:material:pc anti-uv/waterproof level:ip68
(5)record (optional) :optional usb recording function, maximum support 64gb
